Tower Flue Components 2 Port 28mm Motorised Zone Valve
Tower Flue Components 2 Port 28mm Motorised Zone Valve
Technical Specifications
| Brand Name | Tower Flue Components |
|---|---|
| Country Origin | United Kingdom |
| Manufacturer Model No | -2PORT28 |
| Made To Order | N |
| Diameter | 28 mm |
| Size | 28 mm |
| Maximum Temperature | 88 deg |
| Maximum Pressure | 1 bar |
| Number of Ports | 2 |
| Material | Brass - Aluminium - Steel |
| Years Guaranteed | 1 |
| Type | Zone Valve |
Description

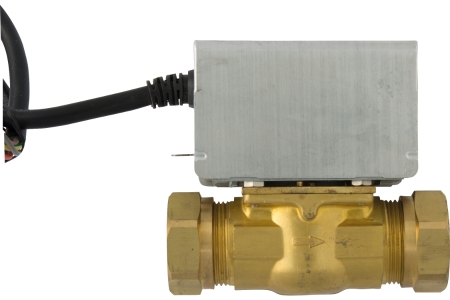

A 2-Port motorised valve supplied with 28mm compression fittings.
It is to be used for the flow control of central heating or hot water in ‘S plan’ central heating systems.
The valve operates in conjunction with either a room thermostat or a cylinder thermostat.
It will open only when in demand from the thermostat with the actoin of a geared synchronous motor and closes by a spring return mechanism.
When the valve is in the open position, a limit switch operates to switch on the heat source.
Please note that this valve must be installed according to the direction of the flow as indicated by the arrow on the valve body.
It is only suitable for open vented or sealed pumped systems.
The valve comes with a 5 core colour coded flexible cable at a length of 1 metre for ease of installation.
Power consumption of the unit at 6W, with a temperature range of 5°C to 88°C and a maxiumum differential pressure of 1 Bar.
Both the actuator heat and synchronous motor are replaceable.
28mm 2 port motorised zone valve
Operating temperature range of 5°C to 88°C
Supply voltage: 220-240V AC 50Hz
Power consumption: 6W
1 metre cable length
